- 53 racks per hour
- 0.83 gallons used per rack
- High efficiency 1 HP pump
- Digital display and dial controls
- Built-in both 40° and 70° rise booster
- Wash temperature 150°F
- Rinse temperature 180°F
Description

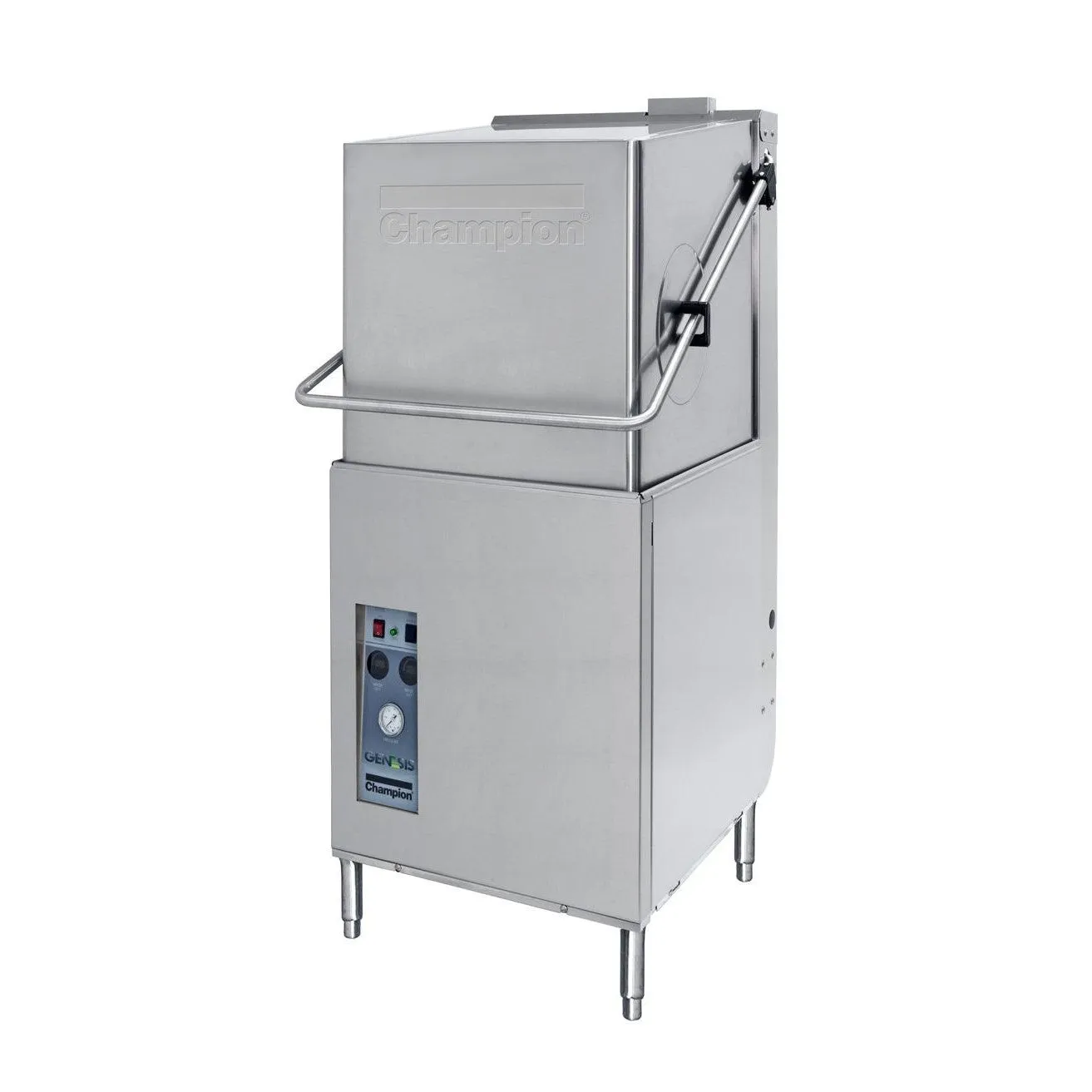

The Champion DH5000 dishwasher has all the features you need to properly wash and sanitize your glassware and dinnerware.
With the high efficiency 1 HP pump the DH5000 is able to wash a up to 53 racks per hour using 0.83 gals per rack. With a built-in 70°F rise booster configured and a final rinse of 180°F, ensuring your dishes are sanitized properly. This dishwasher automatically starts once the hood is close and with the new Dry Assist feature, the drying process is faster than regular dishwashers, helping you save time and an added extra convenience.
The bottom mounted digital controls give you full control of the wash and final rinse temperatures, wash flow pressure, and the option of a standard cycle (60 seconds) or extended cycle (90 seconds). The rinse and wash dial controls feature a digital temperature display and below is an included is a pressure gauge indicating the final rinse water flow pressure.
Overall dimensions
Height: 60 1/8" (77 1/4" Height with Hood up)
Depth: 34 1/8"
Width: 29 1/2"
Specifications
| Specifications | |
|---|---|
| Model | DH5000 |
| Width | 29.05 inches |
| Depth | 34.12 inches |
| Height | 77.25 inches |
| Racks Per Hour | 53 |
| Water Usage Per Rack | 0.83 gallons |
| Motor Horsepower | 1HP |
| Water Consumption Per Hour (max use.) | 45.7 gallons |
| Water Tank Capacity | 9.5 gallons |
| Dishwasher Type | Hood-type |
| Wash Temperature | 150°F |
| Rinse Temperature | 180°F |
| Wattage | 5.2 kW - 10 kW |
| Voltage | 208V |
| Phase | 1 |
